Laptop Motherboard Voltage Check for Laptop Repair

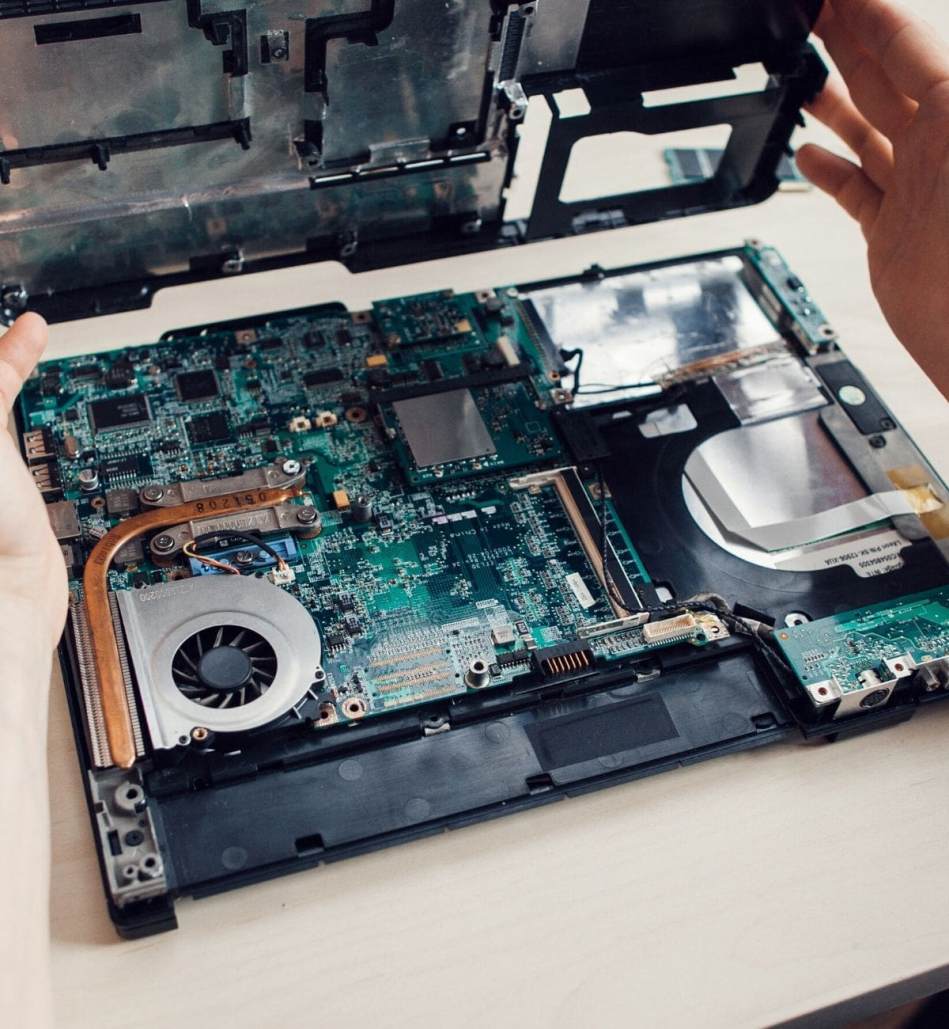

When diagnosing a failed Laptop Motherboard Voltage , understanding voltage points and power distribution is crucial. In this guide, we will cover essential voltages, their significance, and how to troubleshoot common motherboard issues.
Table of Contents
Key Laptop Motherboard Voltage Readings and Their Functions
- Main Power Supply: 19V
- Standby Power Rails: 3.3V, 5V
- CPU Voltage: 0.8V VCC Core
- RAM Voltage: 1.5V DDR3, 1.8V
- BIOS Voltage: 3.3V on Pin 8
- PCH Voltage: 1.05V VCCP
- VT RAM Termination Voltage: 0.75V
- USB and HDMI Power: 5V
- Fan Control Signal: 3.3V when idle, decreases as fan speed increases
- Battery Communication: 3.3V ACMB Data and ACMB Clock
Step-by-Step Diagnosis
1. Checking the Power Input (19V Rail)
- Connect the DC adapter to the motherboard.
- Use a multimeter to check for 19V at the power input connector.
- Ensure 19V is present at the charge circuit components (diodes, MOSFETs, inductors).
- If there is no 19V, check for a short circuit on the main power rail.
2. Checking Standby Power (3.3V and 5V Rails)
- Locate the two inductors near the 3.3V/5V circuit.
- Measure voltage at both inductors – expect 3.3V on one and 5V on the other.
- If missing, inspect MOSFETs, capacitors, and the power management IC.
3. BIOS Voltage Check
- Identify the BIOS chip (typically labeled with a dot indicating Pin 1).
- Measure voltage at Pin 8 – it should read 3.3V.
- If missing, inspect power traces and capacitors leading to the BIOS chip.
4. RAM Circuit Laptop Motherboard Voltage Check
- Identify RAM power inductor near the RAM slots.
- Measure for 1.5V (DDR3) or 1.2V-1.35V (DDR4).
- If missing, check the voltage regulator and MOSFETs supplying power to RAM.
5. CPU Power Laptop Motherboard Voltage Check (VCC Core and VCCP)
- Locate CPU inductors (usually near the processor socket).
- Measure VCC Core – expected 0.8V.
- Check VCCP for 1.05V (important for PCH communication).
- If missing, inspect MOSFETs, inductors, and power management ICs.
6. USB and HDMI Power (5V Rail)
- Identify the 5V power rail near the USB and HDMI ports.
- Measure for 5V at the circuit.
- If missing, trace back to the 5V regulator and associated components.
7. Fan Control Circuit Check
- Identify the fan control IC and signal line.
- Observe fan control signal – typically 3.3V when idle, drops when the fan speeds up.
- If incorrect, inspect the thermal sensor and fan control IC.
8. Battery Circuit Analysis
- Measure ACMB Data and ACMB Clock lines – both should read 3.3V.
- Inspect the battery charging circuit, current sensing resistor, and MOSFETs.
Common Issues and Fixes
- No Power (Dead Board):
- Check for shorts on the 19V rail.
- Inspect power MOSFETs and fuses.
- No CPU Power:
- Ensure 3.3V and 5V rails are present.
- Verify VCC Core (0.8V) and VCCP (1.05V) are functional.
- No Display (BIOS Issue):
- Check BIOS voltage (3.3V on Pin 8).
- Reflash BIOS if necessary.
- USB or HDMI Not Working:
- Confirm 5V power rail functionality.
- Inspect related capacitors and ICs.
- Fan Not Spinning Properly:
- Check fan control signal variations.
- Inspect thermal sensor and PWM controller.
Final Thoughts
Understanding Laptop Motherboard Voltage distribution helps diagnose and repair faulty laptops efficiently. Always verify power rails, inspect critical circuits, and test Laptop Motherboard Voltage signals systematically. Happy repairing!
