Comprehensive Guide to Microsoft Surface Pro 4 Battery Replacement and Troubleshooting
If your computer is displaying the charging icon but the Microsoft Surface Pro 4 Battery percentage remains stagnant, this issue could stem from a variety of factors. It may be a simple software malfunction, an aging battery that is unable to hold a charge effectively, or a faulty charger that requires replacement. This guide explores potential causes and troubleshooting steps to resolve the issue when your device indicates charging, but the battery percentage is not increasing.
Table of Contents
A malfunctioning battery can be incredibly disruptive to your day-to-day activities, particularly if you rely on your device for work or personal tasks. If you find yourself in need of a battery replacement, allow the expert repair technicians at Reformtech to assist you. Our Battery Replacement Service includes a 90-day warranty, covering all but accidental damage. If you notice any issues with the fit, function, or performance of your replacement part, contact us immediately, and we will be happy to help resolve the problem.

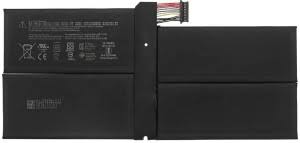

Microsoft Surface Pro 4 Battery Replacement
This repair service specifically addresses battery replacements for the Microsoft Surface Pro 4. Regardless of your device’s internal configuration, all Surface Pro 4 models use the same type of battery, making them universally compatible with this service. One common indicator of battery failure is screen bulging, particularly near the bottom or left side of the device. This is usually caused by the battery expanding and pushing against the screen, which can be hazardous. If you notice your battery swelling, seek immediate replacement to prevent potential dangers.
Steps to Replace Microsoft Surface Pro 4 Battery
Warning: Battery replacement for the Microsoft Surface Pro 4 Battery is a highly complex process and requires extreme caution. If you are not comfortable performing these steps, professional repair services are recommended.
- Power Off the Device: Ensure your Microsoft Surface Pro 4 Battery is completely shut down before proceeding.
- Prepare for Disassembly: Position the device in front of you as though you are about to use it.
- Detach the Screen:
- Use a heating pad to loosen the adhesive around the edges of the screen.
- Insert a small pick between the screen and the body of the device to create an opening.
- Carefully slide the pick around the perimeter of the device to further loosen the adhesive.
- Attach a suction cup to one side of the screen and gently pull to begin separating it from the base.
- Disconnect the Display Cables:
- Identify the two display cables inside the device.
- Use an opening tool to disconnect the cable on the right by gently prying it loose.
- For the left cable, carefully remove the metal casing with a plastic spudger before disconnecting the cable.
- Once disconnected, remove the screen and set it aside.
- Access the Battery:
- Locate the motherboard in the upper right-hand corner.
- Remove the metal casing covering the motherboard by prying around its edges.
- Identify and remove the screw stabilizing the heat sink tubing to free it.
- Disconnect the black wire connected to the motherboard.
- Remove the five screws securing the motherboard, then lift it carefully.
- At the bottom left corner, remove another metal casing and unscrew the final securing screw.
- Remove the Old Battery:
- The battery is secured with strong adhesive tape.
- Wedge an opening tool under the battery to gradually loosen the adhesive.
- Once loosened, carefully pull the battery away from the device.
- Disconnect the battery connector from the motherboard to fully remove it.
- Install the New Battery:
- Position the new battery in the same location as the old one.
- Secure it with adhesive tape if necessary.
- Reconnect the battery connector to the motherboard.
- Reassemble the device by reversing the disassembly steps.
Final Steps and Testing
Once the device is reassembled, power it on and ensure the new Microsoft Surface Pro 4 Battery is recognized and functioning correctly. If the device does not turn on, double-check the connections and ensure all screws are securely fastened.
Why Choose Professional Battery Replacement?
Replacing the Microsoft Surface Pro 4 battery is an intricate process requiring careful handling of delicate components. If done incorrectly, there is a risk of damaging the screen, motherboard, or other vital parts. Reformtech offers expert repair services, ensuring a safe and efficient replacement process.
Key Benefits of Choosing Our Service:
- 90-day warranty on battery replacement (excluding accidental damage)
- Professional and experienced technicians
- High-quality replacement parts
- Quick turnaround time
If you are experiencing battery issues with your Microsoft Surface Pro 4 Battery or any other laptop, contact Reformtech today for reliable and professional service!
